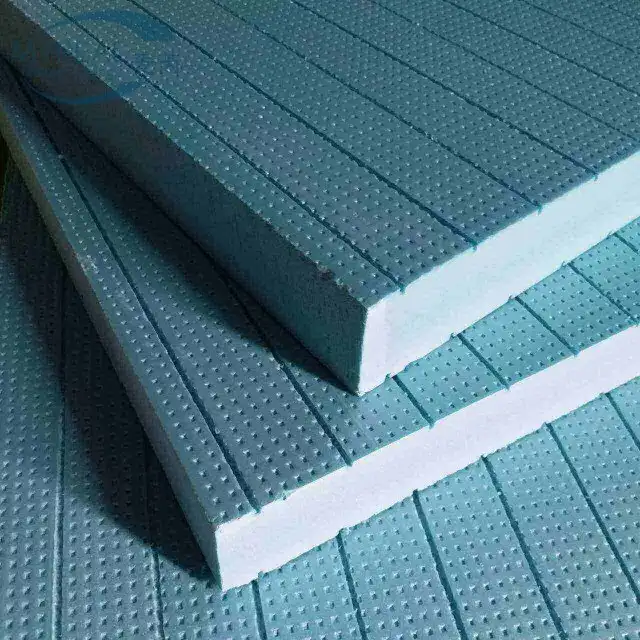

XPS Board – Thermal Insulation, Waterproof & High Compression for Roofs, Floors, Walls 1 | Myreal
-
High-performance & Moisture-resistant – Durable insulation for construction and industrial use.
-
Fire Rated B1/B2 – Slows flame spread and enhances building safety.
-
Strong Compressive Strength – 150–1200 kPa for floors, walls, and load-bearing areas.
-
Flexible Edges & Surface Finishes – SS, SL, TG, RC edges; Smooth, Planed, Fluted, or Embossed surfaces.
-
Customizable Sizes & Densities – Tailored to project requirements.
-
Versatile Applications – Walls, roofs, floors, basements, and industrial facilities.
5.0
Samples can be provided:
Yes, only shipping fee will be charged
MOQ (Minimum Order Quantity):
100 Pcs
Application:
External Walls (Facade),Partition Walls, Roofs,Floors,Basements,Industrial Usage
Certification:
CE,FM,ISO,GB/T
Lead Time:
2 weeks, rush orders can be prioritized
Packaging Type:
Plastic Bags, Cartons or Pallets can be provided upon request
OEM:
Yes, supported
Warranty:
2 years
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Thickness
30-140 mm(1.81-5.51 inch)
Temperature Range
-50-75℃(-58–167°F)
Thermal Conductivity
0.026~0.035 W/(m·K)
R-value
0.86-5.39 m²·K/W
Fire Rating
Class B2/B1
Waterproof
≥98.5%
Compressive Strength
150~1200 kPa
Product Features
🔥 Fire Resistance
- Classified as B1 or B2 flame-retardant according to international fire performance standards for XPS boards.
- Helps slow down flame spread in case of fire.
- Enhances overall building fire safety when installed.
💧 Low Water Absorption
- Closed-cell structure minimizes moisture uptake to less than 1.5%
- Maintains stable thermal performance in damp and humid conditions.
💪 Load-Bearing Capacity
- Compressive strength ranging from 150 to 1200 kPa, depending on board density.
- Available in multiple densities to suit various construction and industrial applications.
- High strength ensures durability under floors, walls, and other load-bearing installations.
🛠️ Flexible Edge Options
Available in multiple edge types to meet diverse installation needs:
- SS (Square): standard flat edge for general use.
- SL (Shiplap): overlapping edges for tight and seamless joints.
- TG (Tongue & Groove): interlocking design for easy alignment and stability.
- RC (Rebated/Chamfered): beveled edges to reduce gaps and improve insulation continuity.
🧱 Flexible Surface Finishes
Multiple Surface Finishes for Different Application Needs
- Smooth: flat and even surface, ideal for direct lamination and finishing.
- Planed: Lightly roughened surface for improved adhesion with mortars and adhesives.
- Fluted: Grooved surface design to enhance bonding strength and mechanical keying.
- Embossed: Textured surface for superior grip and better plaster or render adhesion.
🧩 Customizable Dimensions, Densities & Facings
- Length, width, thickness and density can be customized to meet project requirements.
- Available with various facing materials for enhanced performance and application compatibility, such as:
- Mortar-coated facing – improves bonding with concrete and renders.
- Lime board facing – suitable for breathable wall systems.
- Cement board facing – ideal for high-strength and exterior applications.
- Glass fiber mat facing – enhances surface stability and adhesion.
- Aluminum foil facing – provides moisture and vapor barrier performance.
Standard Sizes & Density
Metric System (Standard Sizes)
| Product | Thickness (mm) | Length (mm) | Width (mm) |
|---|---|---|---|
| XPS Panel | 30-140 | 1200/1400 | 600/1200 |
Imperial / US Customary System
| Product | Thickness (inch) | Length (inch) | Width (inch) |
|---|---|---|---|
| XPS Panel | 1.18–5.51 | 47.24/55.12 | 23.62/47.24 |
*Note: Parameters such as density, thickness, and dimensions can be customized according to project requirements. Higher density improves compressive strength, while lower density is suitable for cost-sensitive insulation applications.
